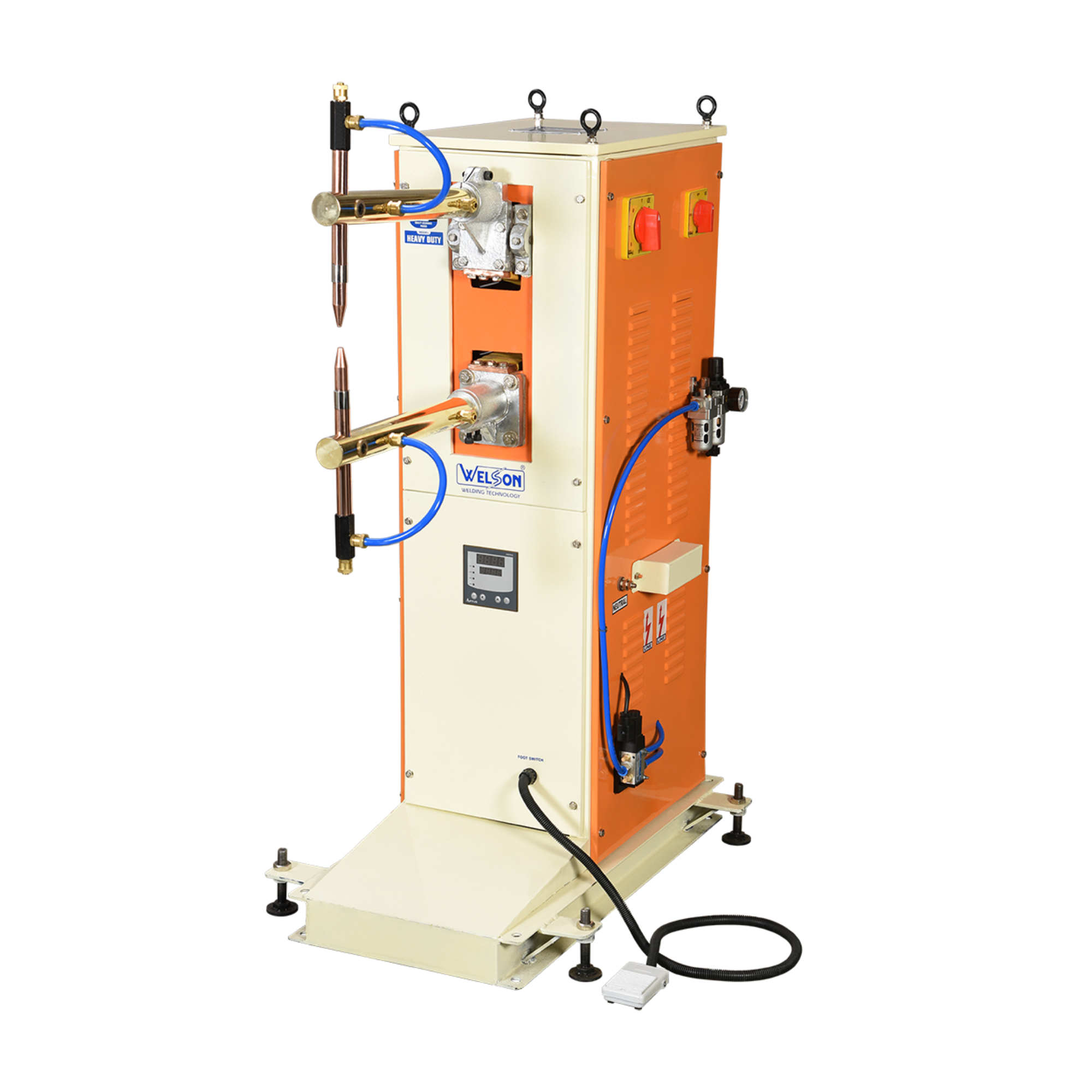

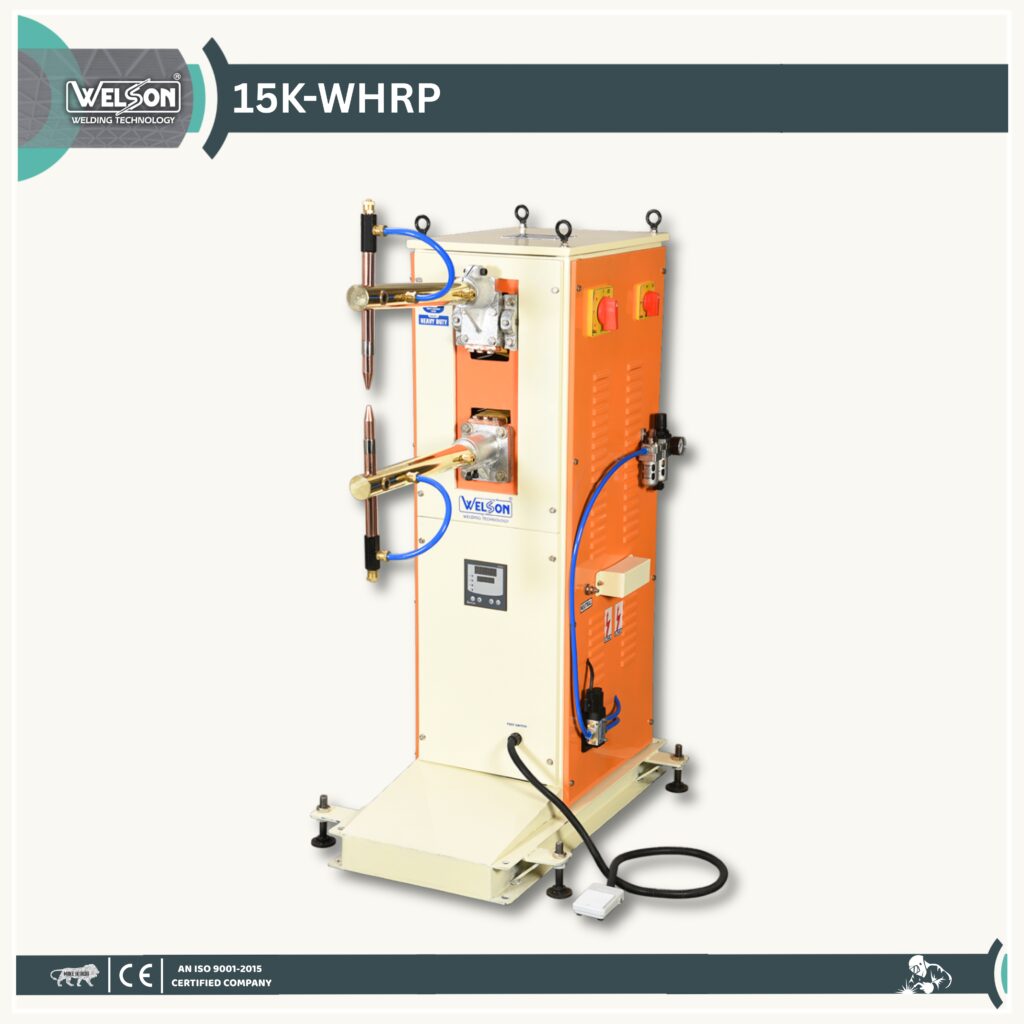

ROCKER ARM PNEUMATIC OPERATED SPOT WELDING MACHINE WITH MICRO CONTROLLER 15K - WHRP

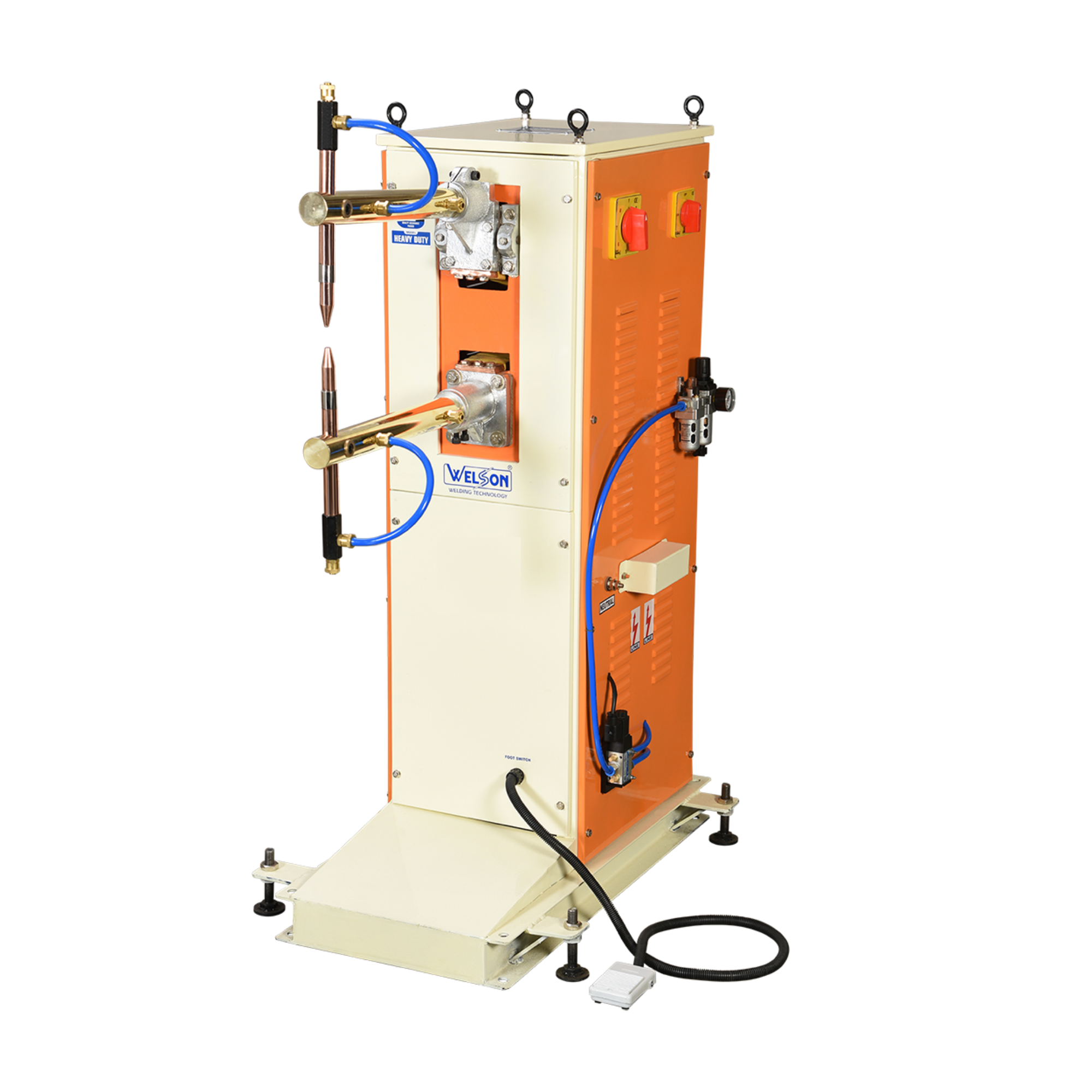

“WELSON” Rocker ARM pneumatic operated spot welding machine are offered in 15, 20 and more KVA models. Pneumatic operated spot welding machine is a type of resistance spot welder designed for high precision welding tasks that require consistent pressure and automated control. It uses compressed air [pneumatics] to operate the welding arms and electrodes with electric foot in it. This welder provides speed and consistency with high quality welds.
Features:
Transformer: Low leakage (High linkage) design, proper cooling and insulation including winding impregnation to enhance reliability and service life.
Current Control: current setting from min. to max can be done by 8 positions, off load tap switch.
Time Control: (With Timer) solid state electronic timer to control weld time from 5 to 50 cycles and 1 to 10 seconds to achieve accurate and repeatable spots.
Weld Pressure: Adjustable max pressure levels are divided from a heavy-duty compression spring mounted on a pressure rod with routine calibrated nut. Here is a special arrangement in the machine minimizes operator fatigue and ensures simple setting.
Cooling: Electrodes and arms are provided with water cooling arrangement with hose connections (water supply to be arranged by the user)
Electrodes: One pair of Morse Taper 2 straight electrodes made from hardened copper alloy is supplied with the equipment. Other types of spares can be supply on specific orders.
