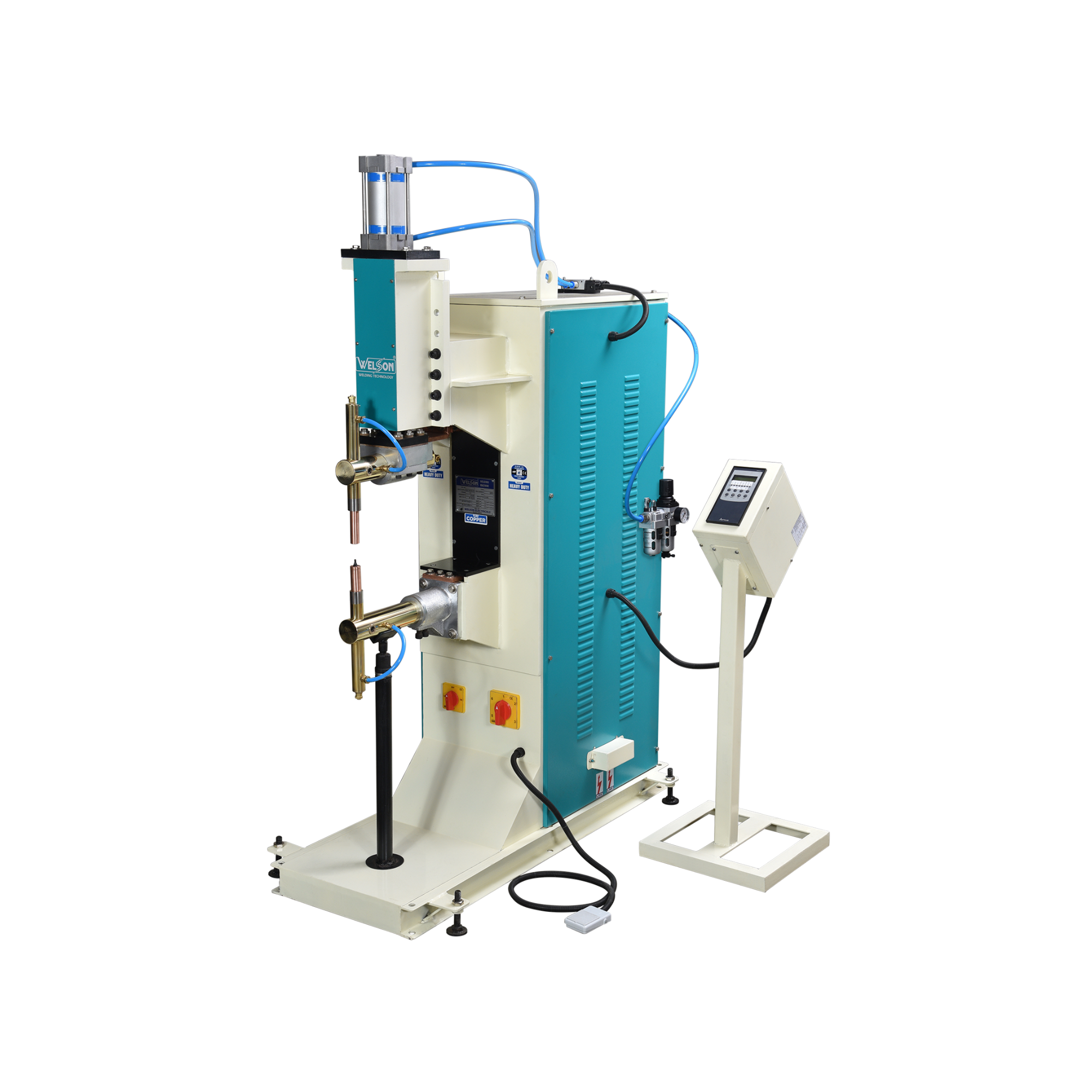

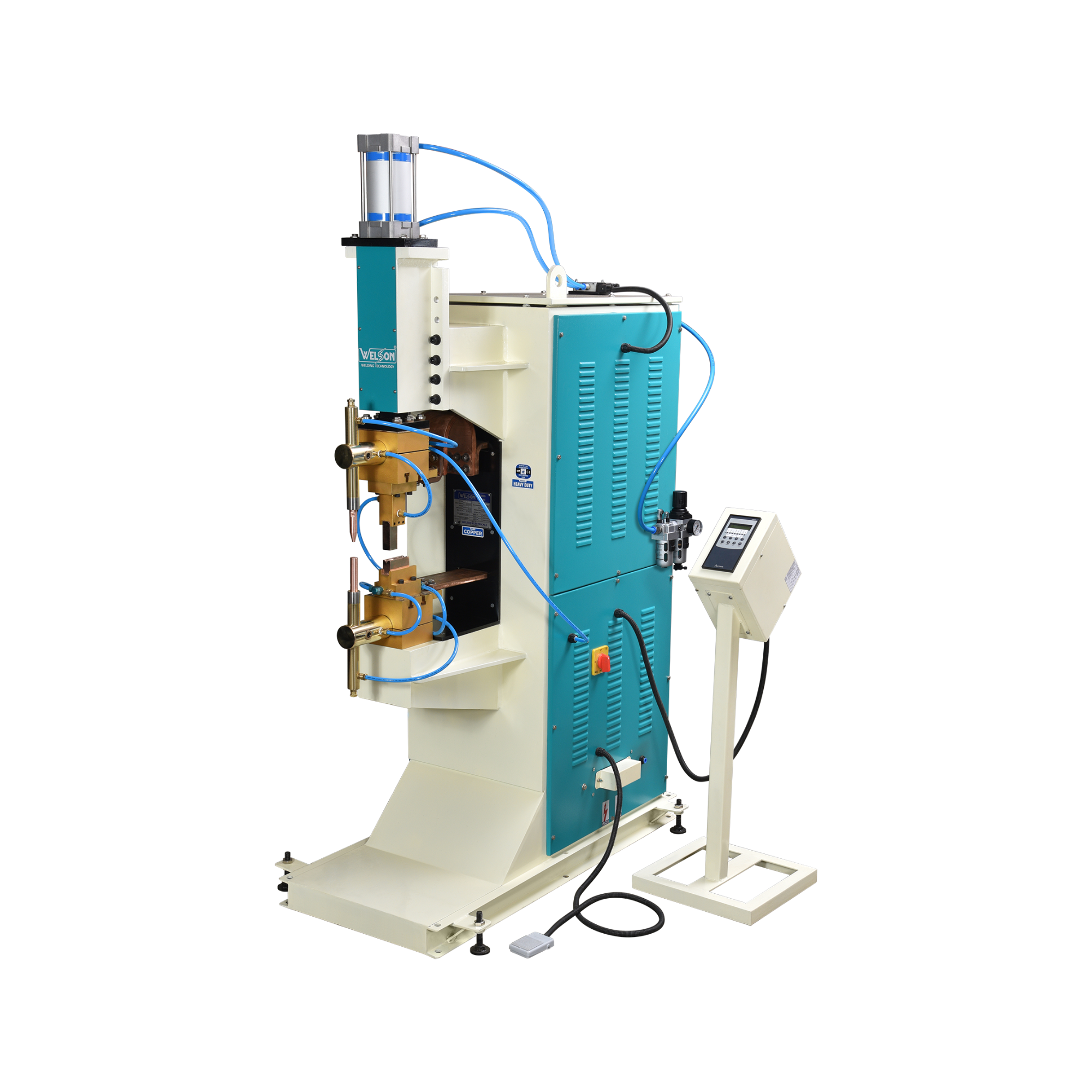

PNEUMATIC OPERATED PROJECTION SPOT WELDING MACHINE WITH MICRO CONTROLLER 50 K WHP
“WELSON” Projection spot welding machine are offered in 15, 20, 25, 30, 50, 75, 100 and more KVA models. Pneumatic projection spot welder is designed for high speed production with steel body heavy duty structure which is used to weld nuts, studs, and screw to the metal plate and frequently used to weld wire mesh and bars. It gives strong and excellent look.
Features:
Transformer: Low leakage (High linkage) design, proper cooling and insulation including winding impregnation to enhance reliability and service life.
Current Control: current setting from min. to max can be done by 8 positions, off load tap switch.
Time Control: (With Timer) solid state electronic timer to control weld time from 5 to 50 cycles and 1 to 10 seconds to achieve accurate and repeatable spots.
Weld Pressure: Adjustable max pressure levels are divided from a heavy-duty compression spring mounted on a pressure rod with routine calibrated nut. Here is a special arrangement in the machine minimizes operator fatigue and ensures simple setting.
Cooling: Electrodes and arms are provided with water cooling arrangement with hose connections (water supply to be arranged by the user)
Electrodes: One pair of Morse Taper 2 straight electrodes made from hardened copper alloy is supplied with the equipment. Other types of spares can be supply on specific orders.
